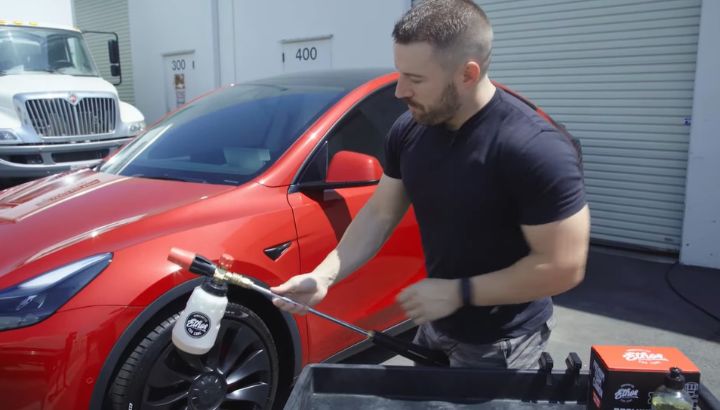

A foam cannon attaches to an electric pressure washer by threading or clicking its inlet fitting directly onto the trigger gun outlet port where the wand normally connects. Most foam cannons use a standard M22 threaded connector or a 1/4-inch quick-connect fitting that matches the gun’s outlet specification. Fill the bottle with diluted soap solution, adjust the fan pattern knob, and squeeze the trigger to produce thick clinging foam across any surface.
Foam cannons transform a basic rinse tool into a proper pre-wash system that protects paint, lifts grime chemically before contact, and delivers professional results on vehicles, siding, and equipment. The connection process takes under two minutes once you understand the fitting system your gun uses. This guide covers every connection type, correct soap dilution, fan pattern adjustment, PSI compatibility requirements, and troubleshooting steps for thin foam output, so your first session produces results immediately.
Understanding Foam Cannons and How They Work
A foam cannon is not simply a soap bottle that sprays liquid. It is a venturi-based mixing device that draws concentrated soap solution from the bottle, mixes it with pressurized water at a precise ratio, and injects air simultaneously to produce thick, clinging foam.
The pressurized water flowing through the cannon body creates a low-pressure zone at the soap pickup tube. This vacuum draws soap from the bottle automatically as long as water is flowing through the device at adequate pressure and flow rate.
The output is a dense foam that clings to vertical surfaces rather than running off immediately. This contact time is what allows the surfactants in the soap to begin breaking down contamination chemically before any mechanical washing contact occurs.
Foam Cannon Versus Foam Gun: Critical Difference
A foam cannon connects to a pressure washer and requires pressurized water to activate the venturi mixing mechanism. A foam gun is a garden hose attachment that uses low-pressure tap water and produces thin, watery lather rather than thick clinging foam.
These two products look nearly identical in photographs and are frequently confused during purchase. The foam gun requires no pressure washer. The foam cannon requires one and produces dramatically thicker foam as a result of the higher pressure and flow driving the venturi system.
If you have a pressure washer and want thick foam comparable to professional detailing results, the foam cannon is the correct product. The foam gun is a budget alternative for users without a pressure washer, and the foam quality reflects that limitation directly.
Minimum PSI and GPM Requirements for Foam Cannons
Foam cannons function across a range of pressures but produce their best output within a specific performance window. Most quality foam cannons designed for consumer use are rated for operation between 800 and 2,200 PSI.
The more critical specification is GPM flow rate. Foam thickness and volume depend more on water flow than on pressure. A minimum of 1.5 GPM produces acceptable foam on most cannons. Models with 2.0 GPM or higher produce noticeably thicker, longer-lasting foam coverage across the surface.
Most consumer electric pressure washers deliver 1.2 to 1.6 GPM, which falls within the functional range but sits at the lower end for optimal foam production. Gas pressure washers with 2.0 GPM or higher produce thicker foam, but electric models produce usable results when the soap dilution ratio and fan pattern are correctly adjusted.
Identifying the Fitting Type on Your Pressure Washer Gun
Before purchasing a foam cannon or attempting connection, identifying the fitting type on your trigger gun outlet is the essential first step. Connecting a mismatched fitting damages threads or prevents a secure pressure-rated seal.
The two dominant fitting standards in the consumer pressure washer market are the M22 threaded connection and the 1/4-inch quick-connect fitting. These are not interchangeable without adapters, and most foam cannons are sold configured for one or the other.
Check the outlet port on your trigger gun where the wand normally attaches. A hexagonal threaded collar indicates an M22 threaded connection. A smooth cylindrical socket with an outer sliding collar indicates a quick-connect system.
M22 Threaded Connection: How to Identify and Use It
The M22 thread is a metric thread standard with a 22mm outer diameter on the male fitting. It appears as a visible threaded collar at the gun outlet port or at the foam cannon inlet fitting, depending on which component carries the male thread.
Thread the foam cannon inlet clockwise onto the gun outlet by hand until snug, then add one quarter-turn with an adjustable wrench. Do not overtighten. M22 threads are relatively fine and strip easily if excessive torque is applied during connection.
Confirm the connection is sealed by running water briefly before filling the soap bottle. A weeping thread joint indicates either a missing washer inside the fitting or a cross-threaded connection. Disconnect, inspect the washer, and reconnect carefully before pressurizing fully.
Quick-Connect Fitting: How to Identify and Attach
The 1/4-inch quick-connect system uses a spring-loaded collar that locks a male plug into a female socket with a definitive click. Pull the collar back, insert the male fitting fully, and release the collar. Tug the connection outward firmly to confirm the lock is fully engaged.
Most electric pressure washers from Ryobi, Sun Joe, and Greenworks use this quick-connect system at the trigger gun outlet port. Foam cannons sold for electric pressure washer use frequently include a 1/4-inch quick-connect male fitting as the default inlet configuration.
If your foam cannon includes only an M22 fitting but your gun uses quick-connect, an M22 to 1/4-inch adapter solves the compatibility issue. These adapters are widely available for under $10 and convert between the two standards in seconds.
Step-by-Step Foam Cannon Connection Process
This is the complete process for how to attach foam cannon to electric pressure washer equipment from start to finish. Follow every step in sequence for a leak-free connection and immediate foam production on the first trigger pull.
Step 1: Prepare the Machine and Confirm Water Supply
Connect the garden hose to the machine water inlet and open the supply tap fully. Confirm there are no kinks in the supply hose between the tap and the inlet port. A restricted supply reduces GPM below what the foam cannon needs for thick foam production.
Squeeze the trigger on the gun briefly with the machine unplugged to bleed air from the hose and confirm steady water flow. This priming step ensures the foam cannon receives consistent water flow rather than an air-mixed supply that disrupts foam production.
Step 2: Remove the Standard Wand or Nozzle
Disconnect the spray wand from the trigger gun by pulling the quick-connect collar back and withdrawing the wand, or by threading it counterclockwise if your gun uses a threaded wand connection.
Set the wand and nozzle tips aside in a location where they will not collect dirt or debris during the foam cannon session. The wand is not used while the foam cannon is attached. It reconnects at the gun outlet after the foam cannon is removed for the rinse phase.
Step 3: Fill the Foam Cannon Bottle Correctly
Fill the foam cannon bottle with the correct dilution of car wash soap, all-purpose cleaner, or dedicated foam cannon soap solution before attaching the cannon to the gun. Filling after attachment is possible but creates unnecessary mess and makes dilution measurement less accurate.
A standard starting dilution for automotive foam cannon use is 1 to 3 ounces of concentrated car wash soap per liter of water in the bottle. Begin at this dilution and adjust in subsequent sessions based on foam thickness results.
Do not fill the bottle with undiluted concentrated soap expecting thicker foam. Undiluted soap actually produces thinner foam by disrupting the air incorporation mechanism in the venturi chamber. Correct dilution, not higher soap concentration, produces the thickest output.
Step 4: Attach the Foam Cannon to the Trigger Gun
Thread the foam cannon inlet fitting onto the gun outlet clockwise for M22 connections, or insert the quick-connect male fitting into the gun socket and confirm the lock engages. Ensure the connection is fully seated before pressurizing.
Hand-tighten M22 connections until snug, then add one quarter-turn with a wrench. Over-tightening cracks M22 fittings made from lower-grade materials and strips threads on aluminum cannon bodies. Snug plus one quarter-turn is the correct torque for any threaded pressure washer connection at consumer operating pressures.
Step 5: Adjust the Fan Pattern and Soap Ratio Knobs
Most foam cannons include two adjustment knobs: one controlling the fan pattern width and one controlling the soap-to-water ratio at the venturi intake. Both are typically located on the cannon body above the bottle attachment point.
Set the fan pattern to a wide setting for initial testing. A wide fan distributes foam across large surface areas efficiently. A narrower pattern concentrates foam on specific areas but covers less surface per pass.
Set the soap ratio knob to approximately 50 percent of its maximum range as a starting point. Increase or decrease this setting in subsequent sessions based on foam thickness results. Maximum soap ratio does not always produce maximum foam thickness because venturi efficiency changes with the ratio setting.
Step 6: Power On and Apply Foam
Power on the machine and squeeze the trigger. Foam should begin flowing within 1 to 2 seconds of trigger engagement as the soap pickup tube fills and the venturi reaches equilibrium. The first second or two may produce plain water before foam appears as the system primes.
Apply foam from the bottom of vertical surfaces upward to prevent runoff from streaking areas the foam has not yet reached. Allow 3 to 5 minutes of dwell time before rinsing. Do not let foam dry on the surface in direct sunlight, as dried soap residue creates water spots.
Foam Cannon Compatibility: Which Models Work With Electric Pressure Washers
| Foam Cannon Model | Connection Type | Min PSI | Min GPM | Best For | Price Range |
|---|---|---|---|---|---|
| Chemical Guys TORQ | M22 or QC adapter | 1,000 | 1.5 | Automotive detailing | $35 to $55 |
| Adam’s Standard | M22 threaded | 800 | 1.4 | Vehicles and general use | $40 to $60 |
| MTM Hydro PF22 | M22 or QC | 1,000 | 1.6 | Professional automotive | $55 to $80 |
| Favofit Universal | 1/4-inch QC | 1,000 | 1.5 | General residential | $20 to $35 |
| Matcc Adjustable | M22 or QC adapter | 800 | 1.3 | Budget automotive | $18 to $28 |
| Karcher OEM Foam | Karcher proprietary | 1,300 | 1.5 | Karcher machines only | $30 to $50 |
Chemical Guys and MTM Hydro are the two most consistently recommended brands across professional detailing communities for quality foam output and durability of the adjustment mechanism. Budget models perform adequately for occasional use but wear faster at the adjustment knobs and soap pickup tube seal.
Karcher machines use a proprietary connection standard on several models that is not compatible with universal foam cannons without an adapter. Confirm your specific Karcher model’s outlet standard before purchasing any third-party foam cannon.
Optimizing Foam Thickness on Electric Pressure Washers
Getting maximum foam from an electric machine with 1.2 to 1.5 GPM output requires attention to three specific variables that most users adjust incorrectly on first use.
Soap Selection and Dilution Ratio
The soap’s foaming surfactant chemistry matters more than brand recognition for foam cannon output quality. Soaps specifically formulated for foam cannon use contain high-foam surfactants that produce much denser foam than standard car wash shampoo at equivalent dilution.
Products including Meguiar’s Gold Class car wash soap, Chemical Guys Honeydew snow foam, and Adam’s Car Shampoo are specifically formulated for foam cannon use and produce consistently thick foam even on lower-flow electric machines.
Standard dish soap should never be used in a foam cannon or any pressure washer system. Dish soap degrades rubber seals and O-ring materials, creates excessive and difficult-to-rinse suds, and damages wax and coating protection on painted automotive surfaces.
Fan Pattern Setting for Maximum Coverage
A wide fan pattern spreads foam thinly but covers large areas quickly. A narrow pattern deposits more foam per square inch but requires more passes to cover equivalent surface area. Neither setting is universally correct. The appropriate setting depends on the surface being cleaned and the foam thickness objective.
For vehicle panels, a medium-wide fan pattern at 18 to 24 inches of standoff distance produces the best combination of coverage speed and foam thickness. For applying foam into textured surfaces like wheel faces and grille openings, narrow the fan pattern to concentrate foam delivery into tight spaces.
Standoff Distance Effect on Foam Quality
Holding the foam cannon closer to the surface produces thicker, wetter foam deposits. Holding further away allows more air incorporation in the stream before surface contact, producing lighter but more voluminous foam. Both results are useful depending on the goal.
For initial heavy foam application across a vehicle panel before rinsing, apply at 18 to 24 inches to build maximum foam volume across the surface. For targeted foam application to heavily soiled areas before the main foam coat, work at 12 to 15 inches to deposit denser, wetter foam that clings longer during dwell time.
Troubleshooting: When the Foam Cannon Produces Thin or No Foam
Thin, watery output from a foam cannon on an electric pressure washer is the most common issue and almost always traces to one of five specific causes rather than equipment defect.
Diagnosing Thin Foam Output
Check the soap pickup tube inside the bottle first. If the tube is not fully submerged in the soap solution, the venturi draws air instead of soap. The tube must reach the bottom of the bottle and remain submerged as the solution level drops during a session.
Confirm the soap ratio adjustment knob is not fully closed. A fully closed ratio valve prevents any soap from entering the venturi chamber regardless of the soap level in the bottle. Open it to at least the midpoint setting before concluding there is a mechanical fault.
Diagnosing No Foam at All Despite Correct Setup
If water flows from the cannon but no foam appears even with the ratio valve fully open, the soap pickup tube O-ring or check valve has likely failed. These small components prevent water from entering the bottle under pressure. If the check valve fails, water fills the bottle rather than soap being drawn up the tube.
Inspect the pickup tube connection point at the cannon body for visible cracking or deformation of the seal material. Most foam cannon manufacturers sell replacement pickup tube assemblies and O-ring kits that restore function to a cannon with this specific failure mode.
When Flow Rate Is the Root Cause
If soap ratio, fan pattern, and pickup tube are all confirmed correct but foam remains thin and watery, the machine’s GPM output may be insufficient for the specific foam cannon’s venturi design. This is more common with lower-flow electric models rated below 1.4 GPM.
Switch to a foam cannon designed specifically for lower-flow operation, or increase soap concentration slightly above the standard starting ratio to compensate for reduced venturi efficiency at lower flow rates. Some cannons labeled as compatible with 1.2 GPM machines produce noticeably better results than standard models on electric pressure washers.
Foam Cannon Maintenance and Storage
Post-Session Cleaning Procedure
After every foam cannon session, empty any remaining soap solution from the bottle and rinse it thoroughly with clean water. Soap residue left in the bottle between sessions thickens, blocks the pickup tube, and creates deposits in the venturi chamber that reduce foam output progressively across subsequent sessions.
With the cannon still attached to the gun, run clean water through the system for 30 seconds by triggering the machine without soap in the bottle. This flushes residual soap from the venturi chamber, the mixing nozzle, and the outlet path.
Storage and O-Ring Care
Store the foam cannon with the bottle removed to prevent any residual moisture from creating mold or mineral deposits inside the bottle threads during storage. Keep the bottle inverted on a clean surface to allow complete drainage after rinsing.
Inspect the main inlet O-ring seal at the start of each season. This seal prevents water from bypassing the threaded connection under operating pressure. A cracked or deformed inlet O-ring causes water to spray from the connection point during use and reduces effective foam output by lowering the pressure driving the venturi.
Frequently Asked Questions
How do I attach a foam cannon to an electric pressure washer?
Remove the spray wand from the trigger gun outlet. Thread the foam cannon inlet fitting clockwise onto the gun outlet port for M22 connections, or insert the quick-connect male fitting into the gun socket until it clicks for quick-connect systems. Confirm the connection is fully seated and leak-free before filling the bottle.
Fill the bottle with diluted car wash soap, reattach it to the cannon body, set the fan and ratio knobs to starting positions, power on the machine, and squeeze the trigger. Foam should appear within 1 to 2 seconds of continuous trigger engagement.
What fitting does a foam cannon use to connect to an electric pressure washer?
Most foam cannons use either an M22 threaded fitting or a 1/4-inch quick-connect fitting at the inlet. Electric pressure washers from Ryobi, Sun Joe, and Greenworks typically use 1/4-inch quick-connect systems at the trigger gun outlet. Older and some current models use M22 threaded outlets.
Identify your gun outlet type before purchasing a foam cannon. If the connection types do not match, an M22 to 1/4-inch adapter resolves the compatibility issue for under $10. Always confirm the adapter is rated for the machine’s operating pressure before use.
What soap should I use in a foam cannon for car washing?
Use car wash soaps specifically formulated for foam cannon use. Products including Chemical Guys Honeydew Snow Foam, Adam’s Car Shampoo, and Meguiar’s Gold Class car wash soap contain high-foam surfactants that produce thick, clinging foam at the correct dilution ratios for foam cannon venturi systems.
Standard dilution is 1 to 3 ounces of concentrated soap per liter of water in the bottle. Never use dish soap, household cleaners, or undiluted concentrate. These products damage rubber seals inside the cannon and pressure washer, strip wax protection from painted surfaces, and produce poor foam quality despite higher soap concentration.
Why is my foam cannon producing only water and no foam?
The most common cause is a closed or nearly closed soap ratio knob on the cannon body. Open it to at least the midpoint before drawing any further conclusions. The second most common cause is the soap pickup tube not reaching the bottom of the bottle, causing the venturi to draw air instead of solution.
If both checks confirm correct settings and foam is still absent, inspect the pickup tube O-ring and check valve at the point where the tube enters the cannon body. A failed check valve allows water to flow into the bottle rather than soap being drawn upward into the venturi chamber.
Can I use a foam cannon with a 1,600 PSI electric pressure washer?
Yes. A 1,600 PSI electric machine produces usable foam with a correctly sized foam cannon. PSI is less critical than GPM flow rate for foam quality. If the machine delivers 1.4 GPM or more, most standard foam cannons will produce acceptable foam output.
Choose a foam cannon with a minimum PSI rating of 800 to 1,000, which covers the full output range of 1,600 PSI machines comfortably. Adjust the soap ratio knob slightly higher than the standard starting position to compensate for the lower flow rate compared to gas pressure washers operating at 2.0 GPM or above.
How long should I let foam cannon soap dwell before rinsing?
Allow 3 to 5 minutes of dwell time after applying foam before rinsing. This contact period allows the surfactants in the soap solution to penetrate and lift surface contamination chemically, reducing the mechanical scrubbing force needed during the rinse or wash phase.
Do not allow foam to dry on the surface. In direct sunlight or warm ambient temperatures, foam dries within 2 to 3 minutes and leaves soap residue water spots that require additional cleaning to remove. Work in shaded conditions when possible, or apply foam to smaller sections and rinse each section before foam has time to dry.
Do I need a foam cannon or can I use the onboard soap tank on my pressure washer?
Both systems apply soap, but they produce very different results. An onboard downstream injection tank applies diluted soap through the low-pressure black nozzle tip in a liquid stream. A foam cannon applies soap as thick, air-incorporated foam that clings to vertical surfaces significantly longer.
For vehicle washing where clinging dwell time protects paint from mechanical contact during washing, the foam cannon produces meaningfully better results. For general surface cleaning where soap application method matters less than chemical contact time, the onboard tank performs adequately and requires no additional equipment or connection steps.
How do I know if my foam cannon is compatible with my pressure washer?
Check three specifications: the machine’s outlet fitting type (M22 threaded or 1/4-inch quick-connect), the machine’s PSI output (must exceed the cannon’s minimum PSI rating), and the machine’s GPM flow rate (must meet or exceed 1.3 to 1.5 GPM for adequate foam production).
Most consumer electric pressure washers are compatible with universal foam cannons designed for 800 to 2,200 PSI operation. The fitting compatibility issue is the most common barrier and is resolved with an inexpensive adapter. GPM below 1.3 is the limitation that no adapter or adjustment can overcome without machine upgrade.
How do I clean and store a foam cannon after use?
Empty the remaining soap solution from the bottle immediately after the session. Rinse the bottle thoroughly with clean water and shake to remove residual soap. Reattach the bottle and run clean water through the cannon by triggering the machine for 30 seconds without soap in the bottle.
This flush clears venturi chamber residue and mixing nozzle deposits that reduce foam quality progressively if left between sessions. Remove the bottle for storage and store it inverted to drain completely. Inspect the inlet O-ring and soap pickup tube seal at the start of each new season before the first use.
Conclusion
Knowing how to attach foam cannon to electric pressure washer equipment correctly takes under two minutes once the fitting type is confirmed and the bottle is filled with properly diluted soap solution. The M22 and 1/4-inch quick-connect systems cover the vast majority of consumer electric machines, and inexpensive adapters resolve any compatibility gap between them.
Soap selection, dilution ratio, fan pattern, and standoff distance are the four variables that determine foam thickness and coverage quality on every session. Correct dilution consistently outperforms higher concentration, and GPM flow rate matters more than PSI for foam output quality on lower-flow electric machines.
Post-session flushing and bottle removal before storage are the two maintenance habits that keep the cannon producing consistent foam output across many seasons of use.
